Slurry Erosive Wear Tester

TECHNICAL SPECIFICATION

Spindle Speed                  -  100 to 1500 RPM

Motor Drive                       -  AC Frequency Inverter

Speed  Indicator               -  Digital RPM Indicator

Timer                                -  Digital Timer 999.9 min

Slurry Vessels                  -  Double walled water cooled

Diameters                         - 120mm length

Number of Samples          - 6nos

Sample Size                     -  25.4mmx76.2mmx6.35

Water cooling system       - water Circulation for Slurry Vessels

Sample Impact angles      - 15, 30, 45 (Variable)

 Power                              -  230 volts 10mps

Four Ball Test Rig

Four Ball Test Rig capable of measuring the diameters of the scar produced on the 3 balls to an accuracy 0.01mm without removal from the ball test cup.

Water Wash Out Test Apparatus

Specifications:-

Conforms to                :           ASTM  D 1264, D4950, IP 215; FTM 791-3252

Ball bearings               :           6204

Bearing Speed            :           600 rpm

Water impinging          :           0.4ml/s

Water Temperature    :           79⁰ +/- 1.7⁰ C

Preset Timer               :           up to 10hrs

Grease Leakage Tendencies Tester

Specifications:-

Conforms to                                        :           ASTM D 1263; FTM 791- 3454

Spindle speed                                     :           660 rpm

Spindle temperature                           :           105 +/- 1⁰ C

Load on The bearing                           :           28 kgs

Preset temperature controller             :           up to 3000⁰ C
Preset timer                                        :           99hrs:59min:59sec

Ice Adhesion Test Rig

ICE ADHESION TEST RIG is used to measure the adhesion of ice on different surfaces. The test surface is in the form of a cylinder and ice is formed in an annular space between the test surface and a standard surface. The test cylinder is moved at slow speed and the breakage strength is measured as the adhesion strength of the ice on the test surface. Care is to be taken such that the ice does not break but shears on the test surface.The experiment is to be carried out at sub-freezing temperature and hence the sample is to be cooled. A cooling jacket is provided that can control the sample temperature within 1⁰c from -15⁰c to 0⁰c.

Friction Test Rig

RECIPROCATING SLIDING WEAR AND FRICTION MACHINE / HIGH FREQUENCY FRICTION TEST RIG

M/s Magnum Engineers developed versatile Reciprocating Sliding Wear and Friction Machine / High Frequency Friction Test Rig to test various metals, coatings under reciprocating sliding contact at various load and sliding frequencies, under dry and lubricated (with oil and grease) condition. The test rig is bench mounted self standing with vibration isolators.

A specimen is loaded and then reciprocally slide against a fixed counter body a no. of geometries can be accommodated by using a range of simple clamping fixtures. Ball-on-plate, Pin-on-plate, cylinder and plate, piston-cylinder configuration contact. The oscillating motion is provided by a servo controlled motor an eccentrical power transmission for the adjustment of the stroke. Frictional force & co-efficient of friction which is measured by a piezo-electric transducer. The drop of height of moving specimen relative to the fixed specimen can be measured and data acquired continuously. This measurement gives an indication of the combined wear of bothe surfaces.

Two Body Abrasion Test Rig

Twin Roller Test Rig

Thrust Washer Test Rig

Slurry Abrasion Test Rig

Scale Test Rig

Pin On Disk Wear Test Rig

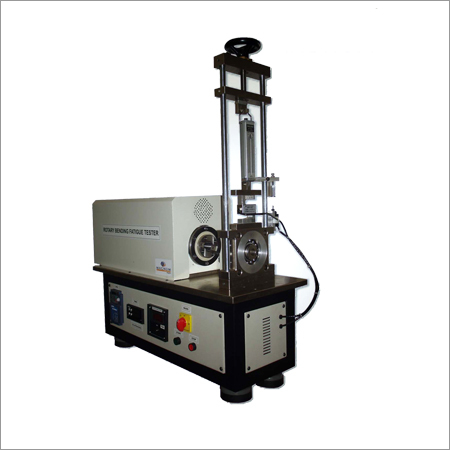

Rotary Fatigue Test Rig

Rotary Fatigue Test Rig

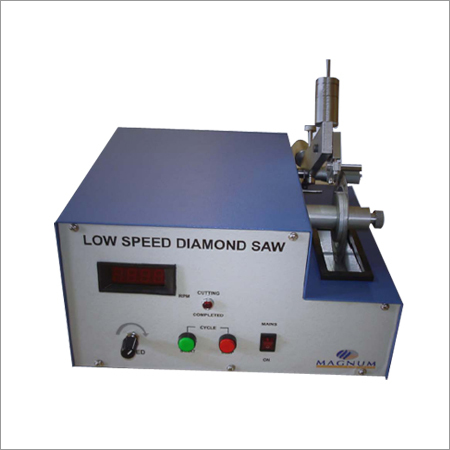

Low Speed Diamond Rig

Lenear Abrasive Wear Test Rig

High Temperature Air jet Erosion Test Rig

Four Ball Tester

Dry Sand Abrasion Test Rig

Air Jet Test Erosion Rig

Console Manifold Freeze Dryers

• Advanced Microprocessor Controls
• Manifold Dryer with 24 to 48 ports
• 20 Liters in 24 hours, 30L Capacity
• Internal Condensing Coil—316L
• -53C or –85C Condenser Temperature
• 316L Construction
• CFC-free Refrigeration
• Hot Gas Defrost
• 200 LPM Vacuum Pump

Laboratory Series Freeze Dryer

• Shelf Area 3.75 sq ft
• Shelf and Manifold Dryer
• PC/PLC Control System
• -53C or –85C Condenser Temperature
• -45C or –70C Shelf Temperature
• 6L in 24 hours, 8L total capacity
• Rectangular 316L Chamber
• 3 Shelf Bulk or 3 Shelf Stoppering
• 10” x 18” Shelves
• Fluid Filled Hollow Shelves
• Internal Condenser with Hot Gas Defrost
• Pneumatic stoppering (6PSI)
• CFC-free Refrigeration

Revo™ Series Freeze Dryer

• Shelf Area from 2 Sq ft to 10 Sq ft
• Full PC/PLC Control Standard
• High speed ethernet connection
• Remote network access
• Redundant data logging with high speed data acquisition
• -53C or -85C Condenser Temperature
• 30L Condenser Capacity
• Remote Condenser with Hot Gas Defrost
• From 1 to 5 Shelves in Bulk or Stoppering
• -45C or -70C Shelf Temperature
• Fluid Filled Hollow Shelves, 12"x 24" Each
• Rectangular 316L Chamber
• 10PSI Hydraulic Stoppering
• Pirani Pressure Control and Gas Backfill Standard
• New! Opti-Dry™ Auto Run optimization software option
• New! Hydrogen Peroxide Compatibility
• Isolator Interface Option

Max Series Freeze Dryer

• Shelf Area from 10 Sq ft to 20 Sq ft
• 5 to 10 Shelves in Bulk or Stoppering
• Full PC/PLC Control Standard
• -53C or –85C Condenser Temperature
• 30L Condenser Capacity
• Remote Condenser with Hot Gas Defrost
• -45C or -70C Shelf Temperature
• Fluid Filled Hollow Shelves, 12” x 24” Each
• Rectangular 316L Chamber
• 10PSI Hydraulic Stoppering
• Pirani Pressure Control
• Clean Room Configuration Available
• New! Hydrogen Peroxide Compatibility
• Isolator Interface Option

Bench Top Manifold Freeze Dryers

• Advanced Microprocessor Controls
• Manifold Dryer with 6 or 12 Ports
• 2 Liters in 24 hours
• Internal Condensing Coil - 316L Stainless Steel
• -48C or –85C Condenser Temperature
• 316L Construction
• CFC-free Refrigeration
• Hot Gas Defrost

PILOT/PRODUCTION - STEAM STERILIZABLE

All wetted components 316L stainless steel

Validation port included

Sterilization temperature: Controllable 121-125 degrees C

Evacuation and drying: Water ring pump

Insulation: High temperature CFC-Free foam with a stainless steel shroud around both chambers

Filter: 0.2 micron Sartorius with integrity testing ports

System cooling to ambient and drying in less than 2 hours using the refrigeration system and a liquid ring pump

Slope to drain

Cylindrical Chamber up to 80 sq ft

SPECIAL PROJECTS AND FABRICATION

BIODIESEL PILOT PLANT

LABORATORY SCALED SOLAR DRYER

LARGE SCALE ASSISTED THERMAL SOLAR DRYER

REACTION CHAMBER TANK

ARM REST FATIQUE MACHINE

DRY FRACTIONATION PLANT

ENZYMATIC INETERESTERIFICATION PLANT

POLYTEST MACHINES : AUTOCYCLE TEST SAMPLE NOTCHING CUTTER

VARIABLE CUTTER AND TRANVERSE SPEEDS
METRIC OR IMPERIAL UNITS WITH MEMORISED SETTING

• CUTTER SPEEDS - 350 to 2000 rpm
• TRANVERSE SPEEDS - 0.081 to 1.0 mm/rev - (0.003 to 0.04 ins/rev)

1. Multi-Sample Loading
2. Dial Comparitor Notch Depth Gauge
3. Single or Multi Tooth Cutters optical profile ground and lapped
4. Anti-Vibration Linear Motion Slide
5. Metric or Imperial Traverse Speeds
6. Build-in Test Sample Centralising Jig
7. Micro Adjustment Notch Depth
8. Standard Notch Depth Setting Blocks
9. Notches to Internation Standards (for example, Izod and Charpy)
10. Fast Return Traverse Speed
11. Easy to Read Digital Speed displays
12. Easy Clean removable Waste Tray

POLYTEST MACHINES : M500-100 CT TENSILE TESTER

Features :

• Machine Capacity up to 100 kN
• Overall Dimensions 762mm x 505mm x 1585mm
• Comprehensive Wintest Analysis Package Supports ISO, ASTM & BS EN Specifications
• Test downloaded & stored on PC or Laptop to Setup & Control the Tester
• Table Top Design
• Automatic Detection of Load Cells
• Tesion, Compression, Flexural & Shear Grips Available
• Power Available 115v or 230v @ 50/60 Hz

POLYTEST MACHINES : M500-100 AT TENSILE TESTER

Features :

• Machine Capacity up to 100kN
• Overall dimensions 762mm x 505mm x 1585mm
• Comprehensive Wintest Analysis Package Supports ISO, ASTM & BS EN Specifications
• Tension, Compression, Flexural & Shear
• Integrated Indutrial Computer Module
• Table Top Design
• Automatic Detection of Load Cells
• 15" Touch Screen Colour Display
• Power 115v or 230v @ 50/60 Hz

POLYTEST MACHINES : M350-10 AT TENSILE TESTER

Features :

• Machine Capacity 10kN (5kN & 20 kN version available)
• Overall Dimensions 590mmx450mmx1575mm
• Comprehensive Wintest Analysis Package Supports ISO, ASTM & BS EN Specifications
• Integrated Industrial Computer Module
• Tension, Compression, Flexural & Shear Grips Available
• Table Top Design
• Automatic Detection of Load Cells
• 15" Touch Screen Colour Display
• Power 115v or 230v @ 50/60 Hz

POLYTEST MACHINES : M250-2.5 CT TENSILE TESTER

Features :

- Machine Capacity 2.5 kN ( 3kN version available)
- Overall Dimensions 590mmx450mmx1475m
- Comprehensive Wintest Analysis Package Supports ISO, ASTM & BS EN Specifications
- Tests Downloaded & Stored on PC or Laptop to Setup & Control the Tester
- Table Top Design
- Tension, Compression, Flexural & Shear Grips Available
- Automatic Detection of Load Cells
- Power 115v or 230v @ 50/60 Hz

POLYTEST MACHINES : M250-2.5 AT TENSILE TESTER

Features :

- Machine Capacity 2.5kN (3kN Version Available)
- Overall Dimensions 590mmx450mmx1475mm
- Comprehensive Wintest Analysis Package Supports ISO, ASTM & BS EN Specifications
- Intergrated Industrial Computer Module
- Tension, Compression, Flexural & Shear Grips Available
- Table Top Design
- Automatic Detection of Load Cells
- 15" Touch Screen Colour Display
- Power 115 v or 230v @ 50/60 Hz

POLYTEST MACHINES : IZOD CHARPY TENSION PUNCTURE MICROPROCESSOR CONTROLLED IMPACT SYSTEM

TECHNICAL SPECIFICATION

The design incorporates the following features as standard :

1. Velocity Range:- Variable from 1.5 to 3.8 m/s (4.92 to 12.467 ft/sec)
2. Energy Range:- To 25 Joules (18.44 ft.lbf)
3. Mode of Operation and Results in Metric or Imperial units.
4. Incorporates the latest Microprocessor Control Technology
5. Liquid Crystal Display provides Auto Prompts for Data Entry, Calibration, Test Procedures and Results.
6. Calibration Procedures for Bearing Resistance & Windage, automatically carried out prior to each test
7. Built-in Hard Copy Printergiving Parameters, Results, Statistical Averages, Standard Deviation and Coefficient of Variation after each batch
8. RS232 Output with Cable for Connection to any Standard Computer
9. Ray-Ran "Windows" based Software, to provide additional Hard Copy and Data File Capture
10. Microprocessor will Store, Display, Edit and Print 100 Test Results
11. Solenoid Operated Hammer Release with Audible Pre-Warning
12. Safety Guard electrically inhibits operation if not closed
13. Full set of Operating Instructions
14. Conforms to required CE Regulations

POLYTEST MACHINES : ADVANCED HDT/VICAT SOFTENING POINT SYSTEM

Product Description
Ray-Ran's Advanced 4 Station HDT/Vicat Apparatus has been designed to allow microprocessor control of the heat deflection & softening point testing for all polymer and plastic materials.

HDT - Heat deflection / distortion test, where a standard sized test specimen is subjected to a bending stress, whilst the temperature is raised at a uniform rate. The temperature at which the specified deflection occurs is measured and recorded. Testing is carried out in accordance with the ISO 75 (parts 1, 2 and 3) and ASTM D648 Test Standards.

Vicat (VST) - Softening point test, where a specified needle (indentor) penetrates a specifed distance into a sample with a specified load, whilst the temperature is raised at a uniform rate. The temperature at which the sample was penetrated is recorded at the Vicat Softening Temperature (VST). Testing is carried out in accordance with the ISO 306 and ASTM D1525 Test Standards.

The 4 Station Advanced HDT/Vicat apparatus allows testing of 4 samples at the same time, with an automatic cooling system, LCD display to provide automatic prompts for test procedures, calibration and results, HDT binary loads automatically calculated by microprocessor, over temperature protection, flatwise / edgewise sample testing, integrated calibration system. Tabular results presentation.

POLYTEST MACHINES : FALLING WEIGHT IMPACT TESTER

• Specially designed to evaluate the impact properties of polymer test samples and components
• Variable drop height up to 2,000, giving a maximum impact velocity of 6.264m/s
• Variable drop weights between 1.25kg and 10kg.
• Maximum impact energy 196 Joules
• Drop weight solenoid released and automatically returned using pneumatically operated rodless cylinder
• The weight carrier can be fitted with different tup designs.
• Picture shows versions for testing pipes and incorporating a variable height "vee" rest for pipes from 16mm to 400mm dia. Also fitted with anti-rebound device to prevent the weight striker hitting the pipe more than one.

POLYTEST MACHINES : ADVANCED FALLING DART IMPACT TESTER

• Drop Height Variable between 660mm to 1525mm
• Automatic Release of Drop Dart
• Test results downloaded to PC
• Microprocessor Controlled System
• Manual version also available
• Conforms to ASTM D1709 Method A & B ISO 7765-1
• Floor Mounted System
• 2 Drop Darts supplied as Standard
• Pneumatic Clamping as Standard
• 220/240v 50Hz or 110v 60Hz

POLYTEST MACHINES : TEST SAMPLE CUTTING PRESS

• Pneumatically Operated
• Cutting Tools to any shape. To suit any International Standard
• Adaptors available to suit any Tool Shank size or form
• Suitable for Plastic, Rubber, Paper, Fabric and Laminates
• For further information on any of the Ray-Ran range of sample preparation or testing equipment, call our sales office

POLYTEST MACHINES : CT SERIES FLOOR STANDING TENSILE TESTERS

• 3 Models Available with Capacities up to 300Kn
• Up to 4 Load Cells can be fitted
• Overall Dimensions 1100x750x2950
• Tension, Flexural, Compression etc Grips Available
• Automatic Detection of Load Cells
• Wintest Analysis Testing Software Package Supports ISO, ASTM & BS EN Specifications

POLYTEST MACHINES : NEW LARGE CNC MODEL 2 PROFILE CUTTER

Product Description Large CNC Milling Machine designed for the pipe manufacturing industry. Primarily to cut samples from thick walled pipe sections and thick sheet up to 60mm Fully guarded with wide up-and-over door. with an X axis of 900 mm, Y axis of 300 mm Z axis of 80 mm with a table size 500 mm by 440 mm A range of cutter spindles available with speeds up to 23,000 rpm Operated from a stand alone PC and Flashcut CNC PC Software Test Description Small CNC Milling Machine to produce complex shapes, such as Dogbones & Dumbells from very thick material.

POLYTEST MACHINES : CNC MODEL 1 PROFILE CUTTER

The Ray-Ran CNC Model 1 Profile Cutter is a vertical three-axis rapid prototyping milling machine that can be used for many applications, but primarily for the cutting of test samples. It is supplied as standard with serial interface for a personal computer or laptop, and versatile but user friendly Windows Flashcut CNC PC software. This a bench top unit measuring 67 cm wide, 55 cm deep, 78 cm high. Milling on the CNC Test Sample Profile Cutter is a profiling machining process, which means that the cutter is passed around a piece of material and a shape is formed. The spindle is high speed, capable of taking side-loads as well as end loads. It is also capable of moving materials in relation to the spindle in 3D, simultaneous motions. This is all controlled by a personal computer. The CNC Test Sample Profile Cutter’s three table motions are classified X, Y and Z axis, and are standard to most industrial operations. The Ray-Ran CNC Test Sample Profile Cutter is supplied as standard complete with computer interface cabling and Windows Flashcut CNC v2.01 PC software. CNC programs are available at low cost for any shape or size of test sample profile to any International test standard, and may be purchased together with the apparatus or at a later date as required.

POLYTEST MACHINES : 25AT BOX COMPRESSION TESTER

• Max Cartoon Size 1000x1000x1000
• Overall Dimension 1420x1020x2000
• 15" Touch Screen Colour Display
• Intergral Computer Module
• Up to 4 Load Cells can be fitted
• On Board Display of Real Time Graphs Results & Statistics
• Wintest Analysis Testing Software Package Supports ISO, ASTM & BS EN Specifications

POLYTEST MACHINES : AT SERIES FLOOR STANDING TENSILE TESTERS

• 3 models available with capacities up to 300 Kn
• Wintest Analysis Testing SoftwarePackage Support ISO, ASTM & BS EN Specifications
• Up to 4 Load Cells can be fitted
• Automatic Detection of Load Cells
• Overall Dimensions 1100x750x2950
• Tension, Flexural, Compression etc Grips Available
• 15" Touch Screen Colour Display
• Intergral Computer Module
• On Board Display of Real Time Graphs Results & Statistics
• Power 380/400v 3ph
